Relv1 349xx

RELV1

Cyphertag Mid-range reader

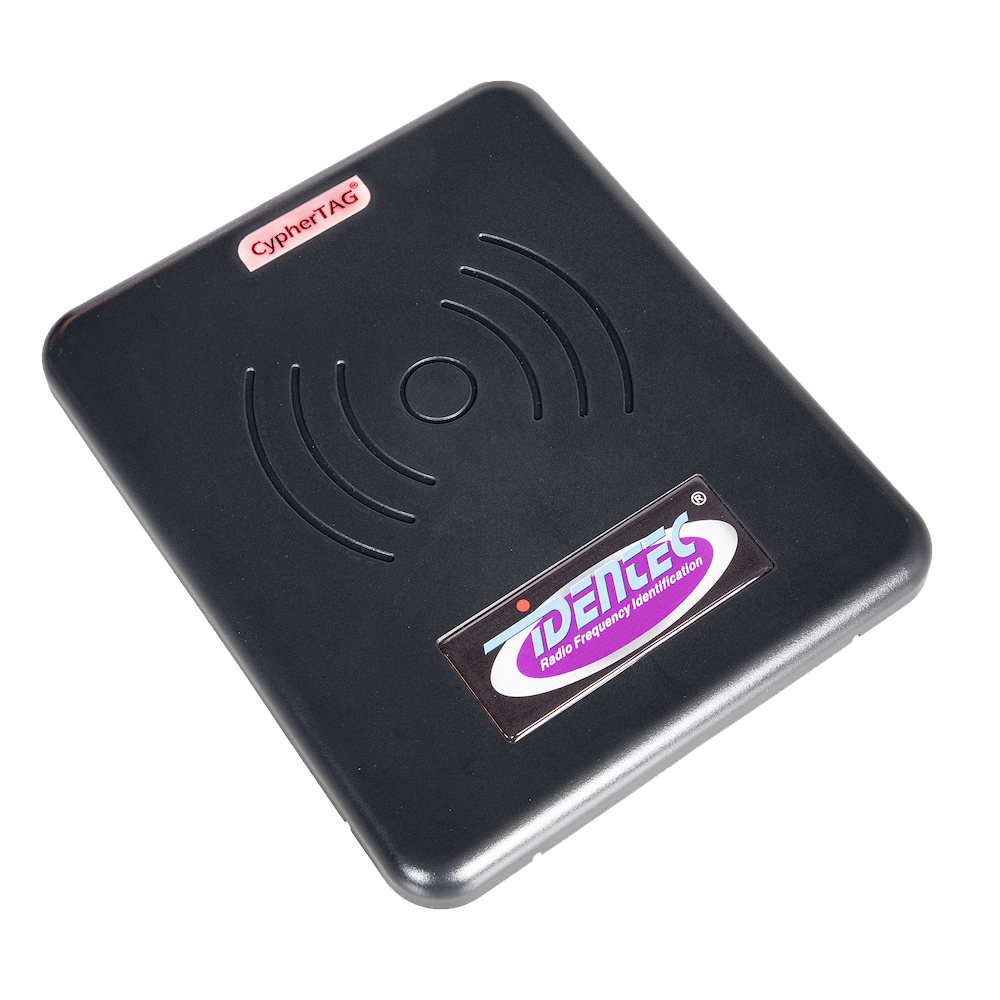

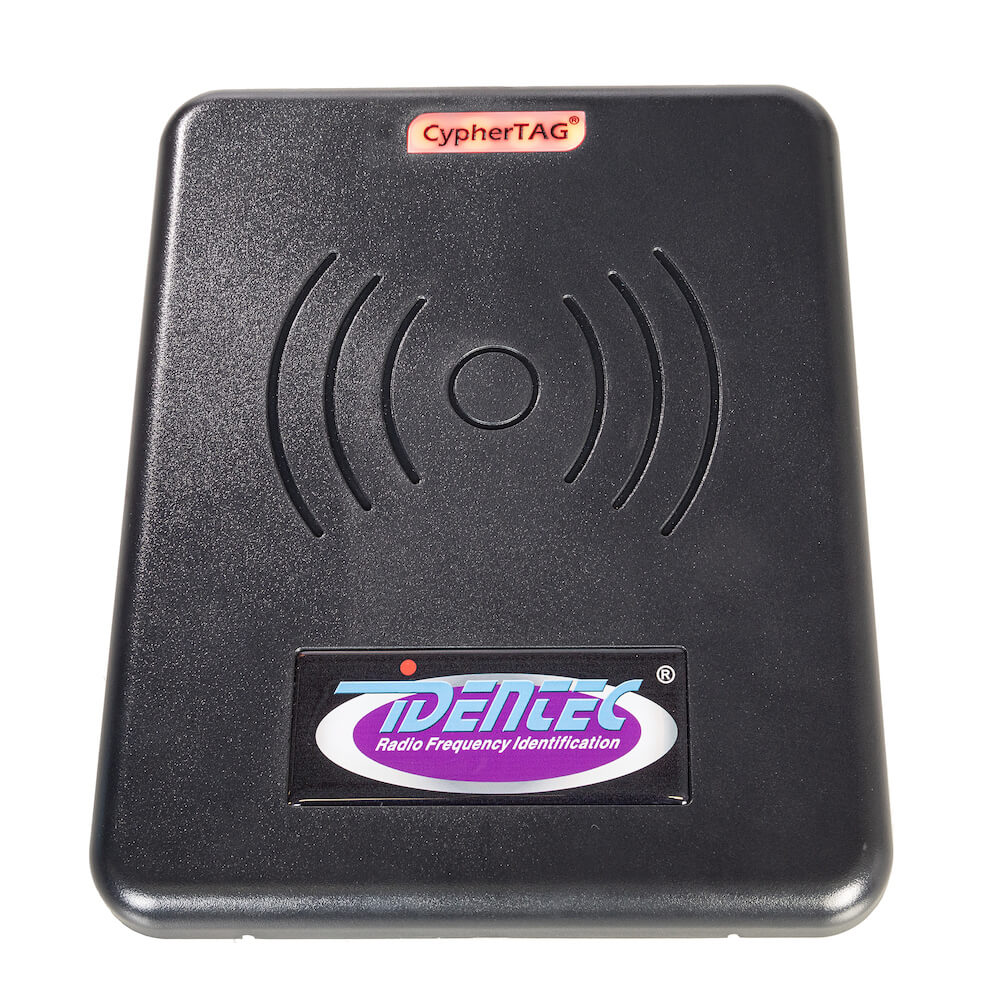

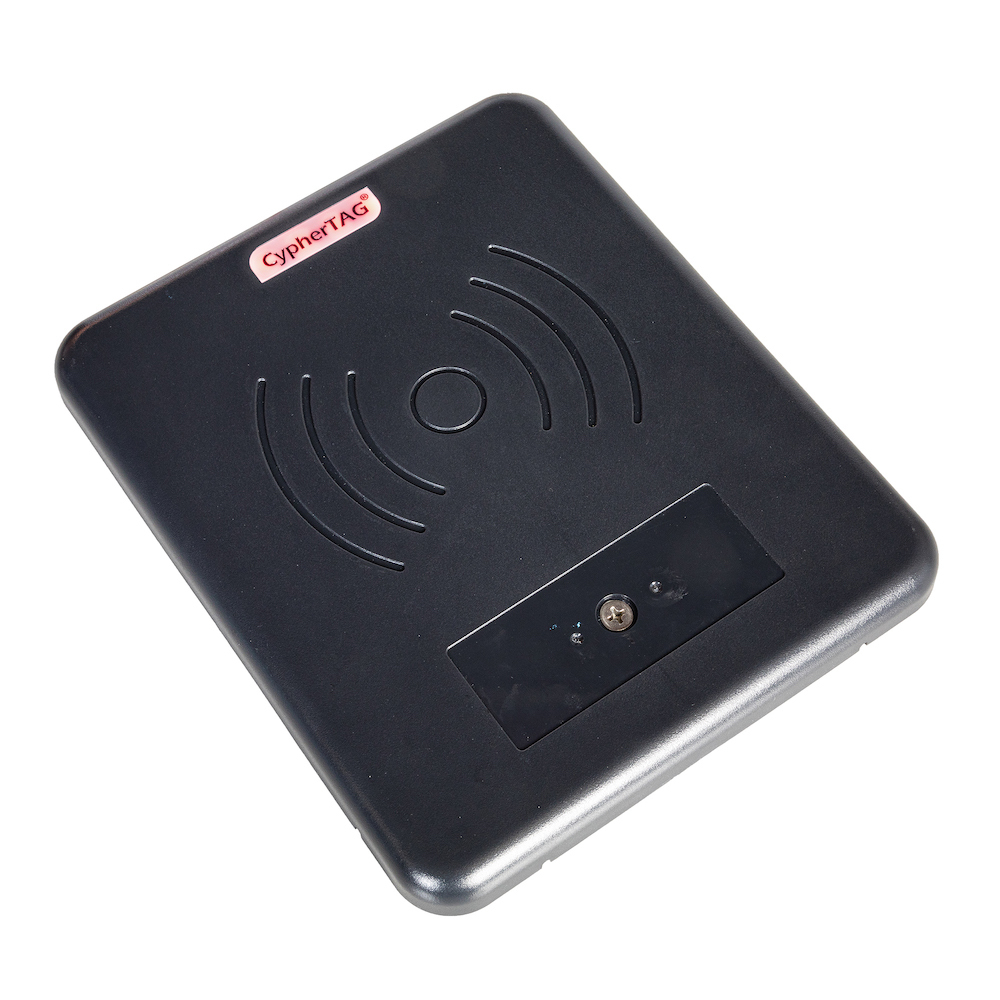

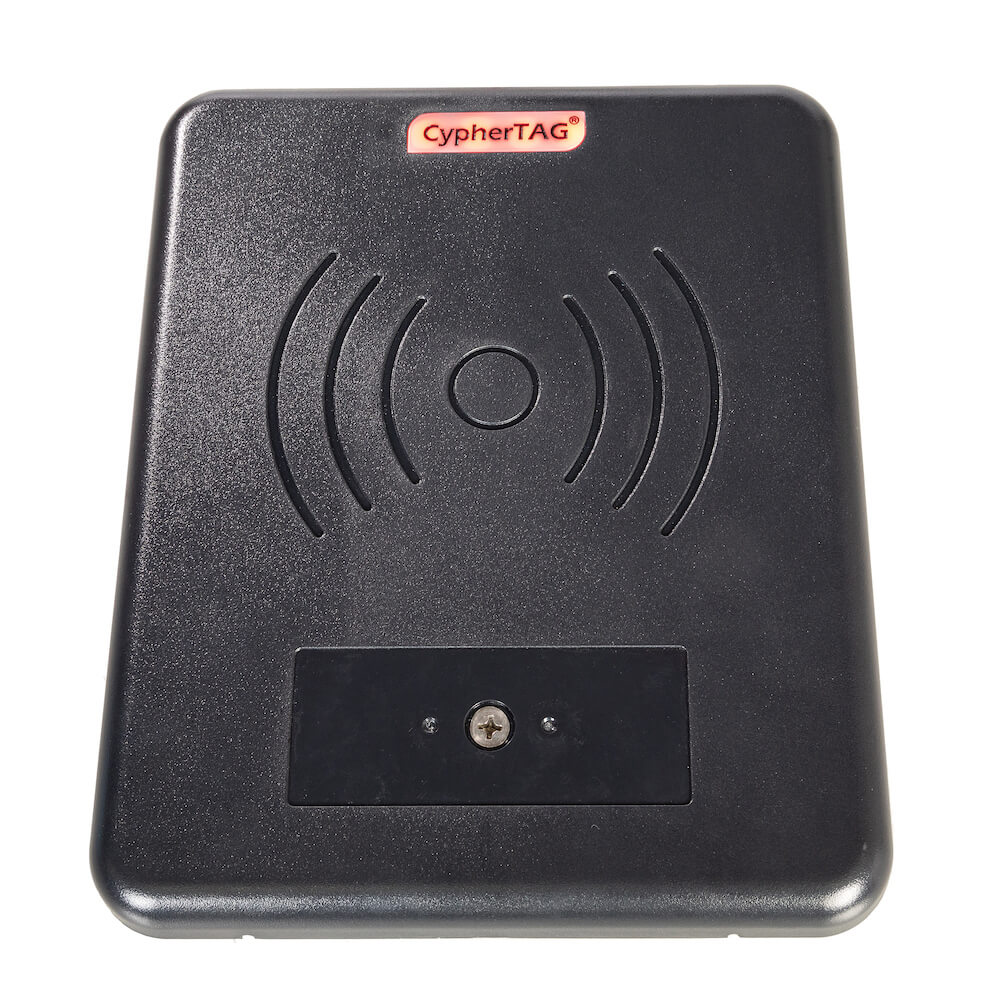

A complete Cyphertag® reader, the RELV1 has been designed to provide a mid-range, low-cost option to complement our "Hands Free" readers. It is simple and quick to install. Supplied as standard as a black Polycarbonate unit and mounting plate, this unit is suitable for numerous applications as its size means it can be mounted unobtrusively giving read ranges of up to 1.3m.

Features

  • Mid-range reader (Max 1.3m range)
  • High fidelity reading (1:100 million error rate)
  • Secure digital data exchange
  • Range selection (1.3m to 0.4m)
  • Battery low indicator
  • Can be arranged in Master/Slave configuration
  • Fast multiple (anti-clash) reading
  • Screw terminal connectors
  • Configurable Relay
  • Outputs for - Wiegand, Clock and Data, RS232 Serial.

Applications

Access Control

Convenient touch free technology to easily manage access to your locations.

Car Parking

Create an intelligent parking system where the entry and exit of cars are monitored, with vehicle or driver identification, or both.

Technical Specification

Specification Details
Output Format: Wiegand or Clock and Data & RS232
Physical Size: 240 x 200 x 18mm          9 1/2 x 7 7/8 x 11/16 in.
Weight: 500g                               17.56oz
Material: Body:
  Back Plate:
  Label:
Black Polycarbonate moulding epoxy filled.
Black Polycarbonate
Polycarbonate
Temperature Specification: -20°C to +60°C               -4°F to 140°F
Humidity: 0 to 80% non condensing.

LED Indication:

RED internally controlled
GREEN can be internally or externally controlled
Terminations: 14 pin screw terminal, USB port for configuration
Power Requirements: 12 – 26 volts DC @ 150mA max.
Buzzer Operation: Configurable for tag read or battery low
Read Range: Typically 1.30m, configurable to 0.4m
Speed of Reading: Typically 10 tags per second
Dual operation:
Parallel operation to cover larger areas.

Resources

Downloadable files containing technical information about RELV1
