Edn1 Census 00

EDN1

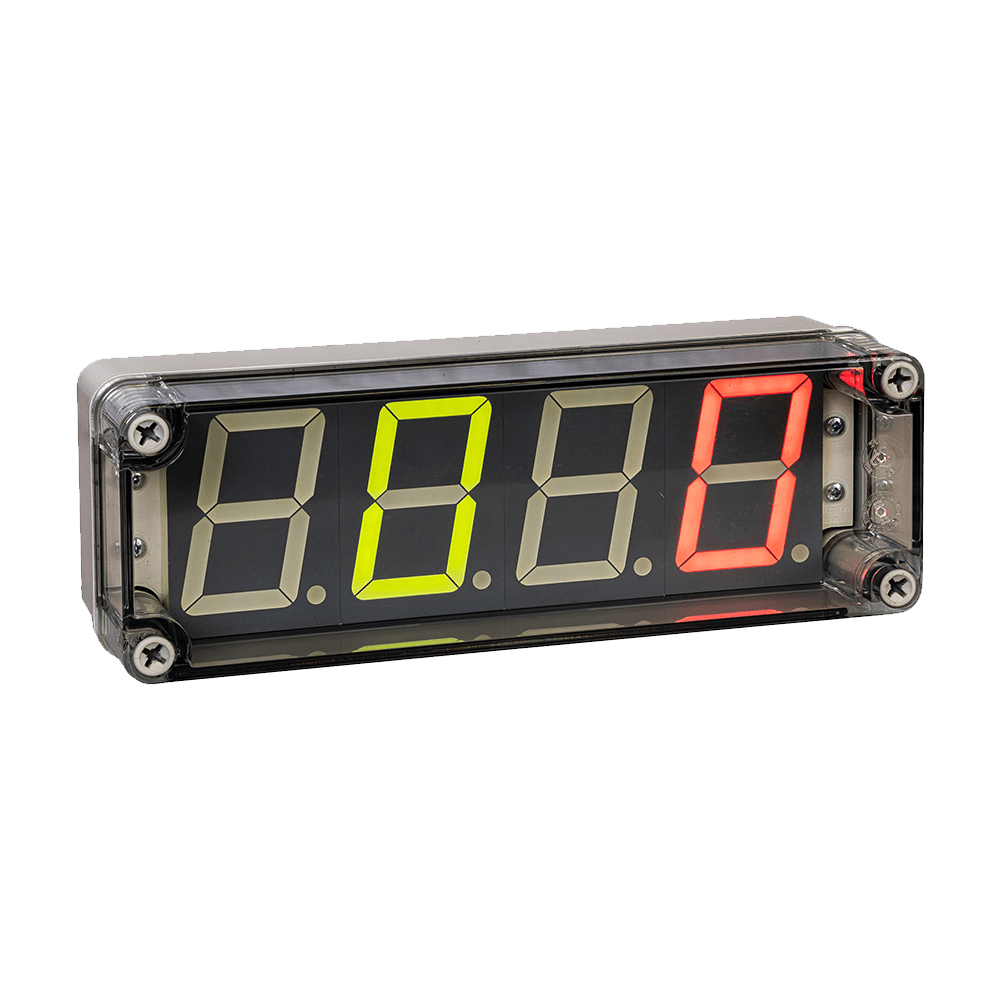

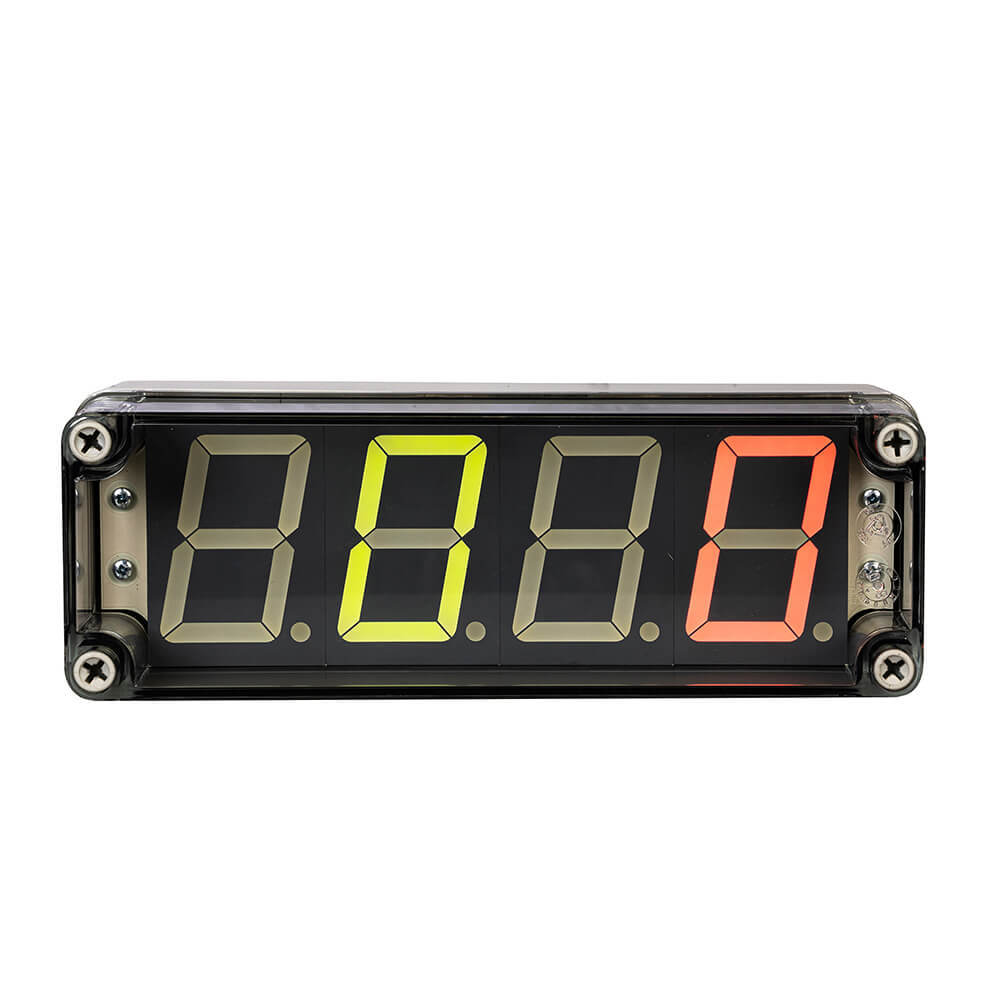

The EDN1 display counter is one of many options available to the Cryptag® Census® CRx product and the Cyphertag® product range. The EDN1 indicates the number of tags currently being interrogated by the reader. The EDN1 can be mounted externally to the reader.

Features

  • Displays the number of Tags in Readers Detection Zone(s)
  • Provides Incrementing Count of Tags Entering Through CR-DS Direction Sensing Units
  • CE, DTI & FCC Approved.
Edn1 Census 01 Edn1 Census 02

Applications

Access Control

Convenient touch free technology to easily manage access to your locations.

Car Parking

Create an intelligent parking system where the entry and exit of cars are monitored, with vehicle or driver identification, or both.

Technical Specification

Specification Details
Power requirements 12-26 Volts @ 500mA
Dimensions 220 x 110 x 45mm
Weight 500g
Temperature range -20 to +60°C non condensing
Colour/Housing White PC housing, Clear PC front
LED function 4 x 70mm - 7 segment displays
Input formats RS232
Terminations 5mm terminal blocks



The product is suitable for numerous applications, they include but are not limited to:

  • Car Parking Control
  • Number of Personnel in a defined Area. (e.g. Lift, Computer Room, Mine, etc)
  • Personnel Movement Data
  • System Diagnostics
  • Sports Timing
