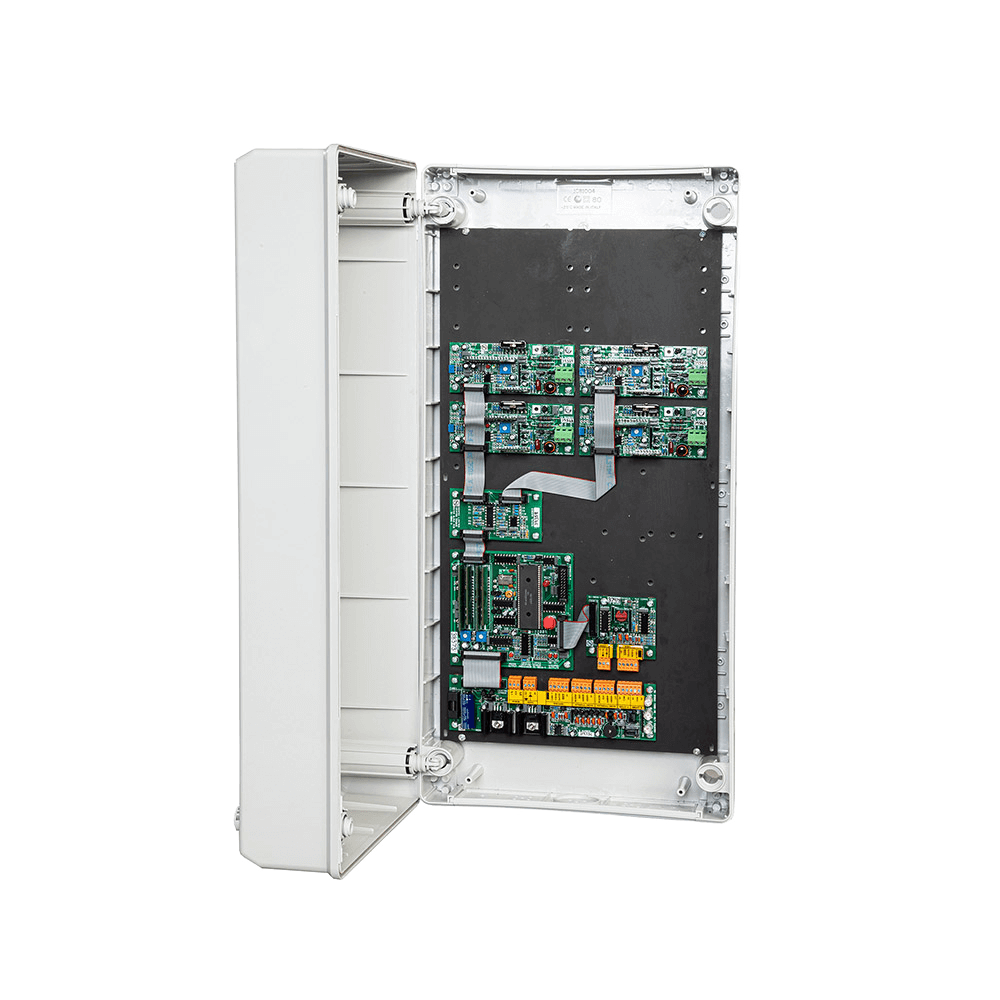

Cr1 Ds Ms 00

CR1-DS-MS

The CR1-DS-MS reader utilises two external pairs of loop aerials to enable direction sensing at ranges of up to 3 metres or the independent monitoring of two nearby doors using one controller.

The CR1-DS-MS reader interrogates each loop pair in turn for the presence of tags (i.e. multiplexing). In the direction sensing case a tag moving from one loop pair to another will have its travel direction identified by the reader. The speed of reading tags is effectively halved by this mechanism.

It is important that each of the detection zones created by the loop pairs should not overlap by more than a few centimetres. If used with the Dual or Inward Twin firmware each loop pair is managed independent of the other and the data relating to tags seen in each zone is processed on a separate output port. Where detection zones overlap tags will be reported from both ports

The product is suitable for numerous applications, they include but are not limited to:

  • Hands Free Operation (up to 3.0 metres with external aerial);
  • Highest Probability of Tag Identification;
  • Direction Sensing;
  • Dual Door Controller;
  • 2 x External Pairs of Loop Aerials;
  • Tag Battery Low Indication;
  • Multiple Tag Reading;
  • Secure Data Exchange;
  • Reverse Polarity Protection;
  • Encrypted Data Communications;
  • 1:100 Million Error Rate;

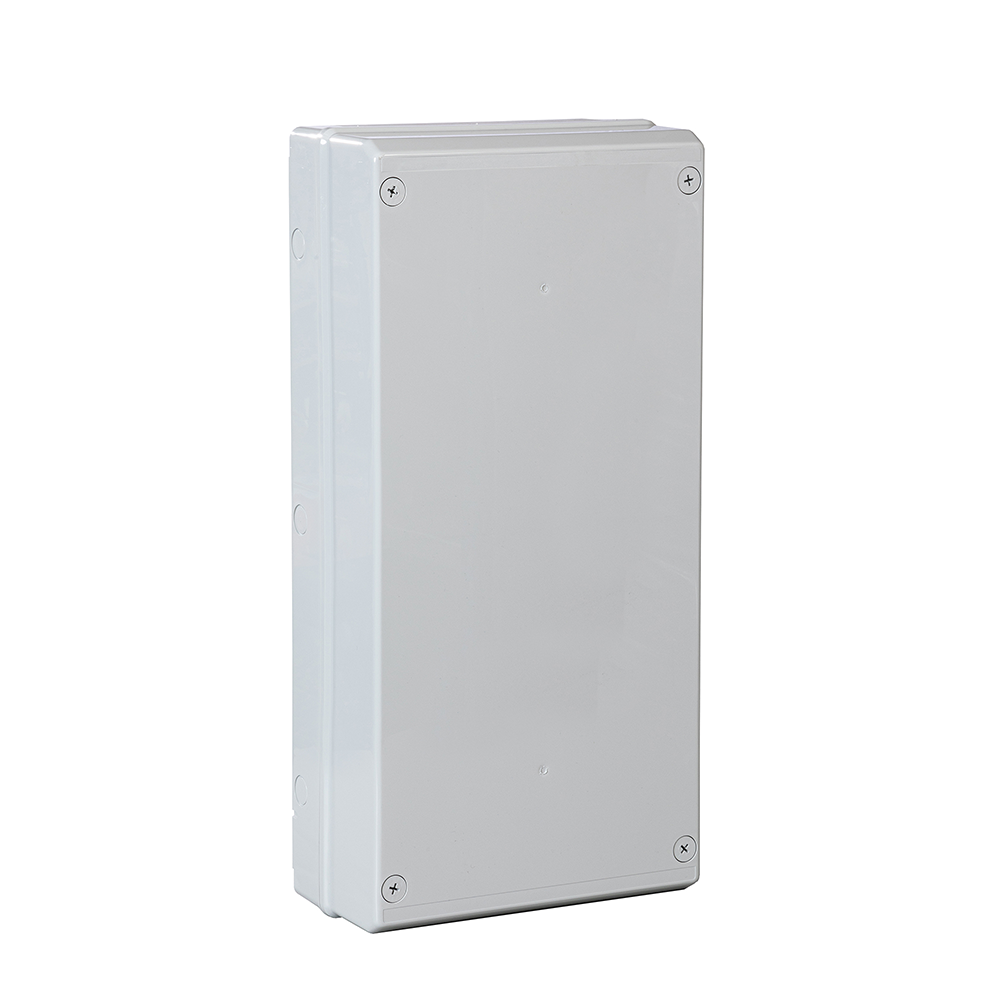

Cr1 Ds Ms 01 Cr1 Ds Ms 02

Applications

Access Control

Convenient touch free technology to easily manage access to your locations.

Safety

Automatic staff registration for safety roll call or attendance registration through real-time alerts and accurate location information.

Article Tagging

Hands free tagging allowing complete hands-free access control, monitoring the whereabouts of assets.

Car Parking

Create an intelligent parking system where the entry and exit of cars are monitored, with vehicle or driver identification, or both.

Technical Specification

All CR1-DS-MS readers provide Wiegand or Clock & Data, as well as RS232 output. Advanced features include local alarm outputs, print options, and an optional counter display (See IDN1, EDN1 for further information).

Specification Details
Power requirements 12-26 Volts @ 500mA
Dimensions 275 x 570 x 140mm
Weight 4kg
Temperature range -20 to +60°C (non condensing)
Housing Grey Polycarbonate IP65 & IK10
LED function RED internally/externally controlled
AMBER internally/externally controlled
GREEN internally/externally controlled
Noise indication, Data Sent Indication
Output Formats 2 x Wiegand or Clock & Data & RS232
Terminations 2.5mm removable connectors

Resources

Downloadable files containing technical information about CR1-DS-MS
