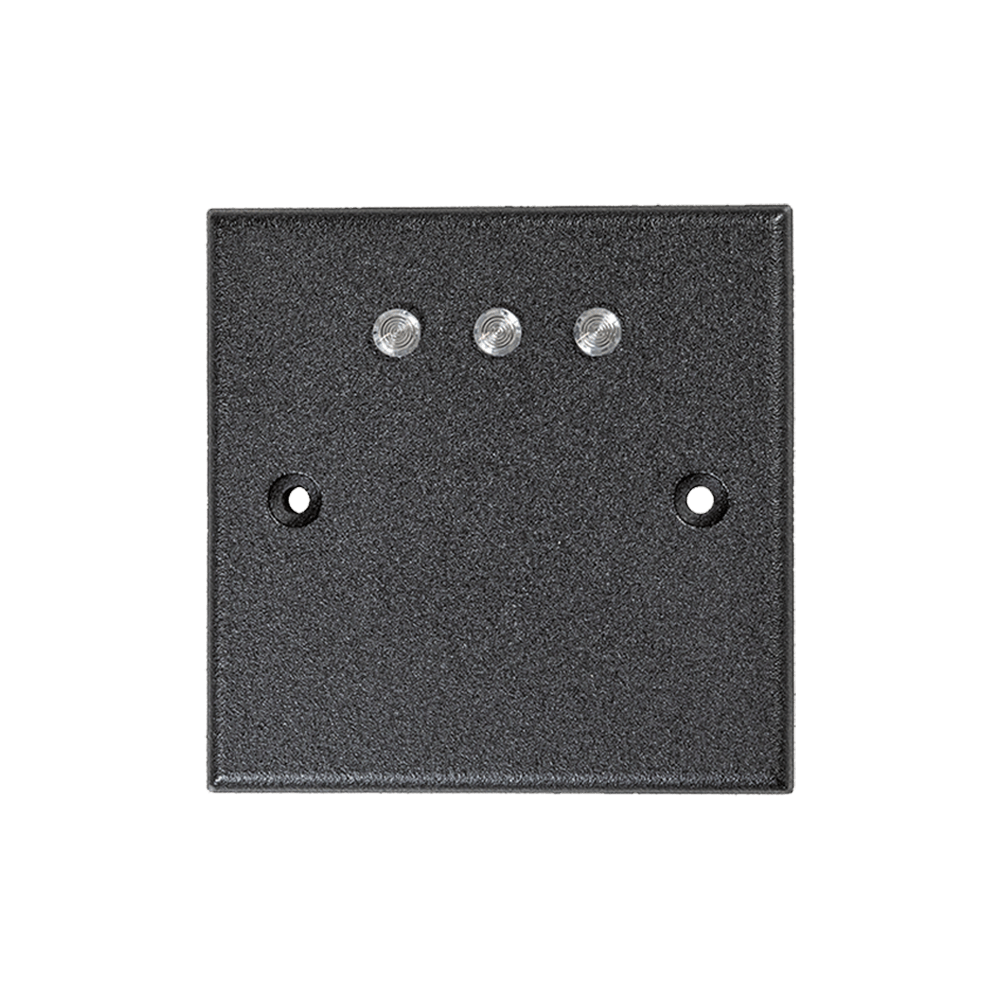

Ja1_a

JA1

Single Zone Antenna

The JA1 Antenna improves the JR1 Reader by providing a single detection zone that extends up to 15 meters. Specifically designed for installation on a single backbox, it ensures dependable performance and offers versatile deployment options in a wide range of environments.

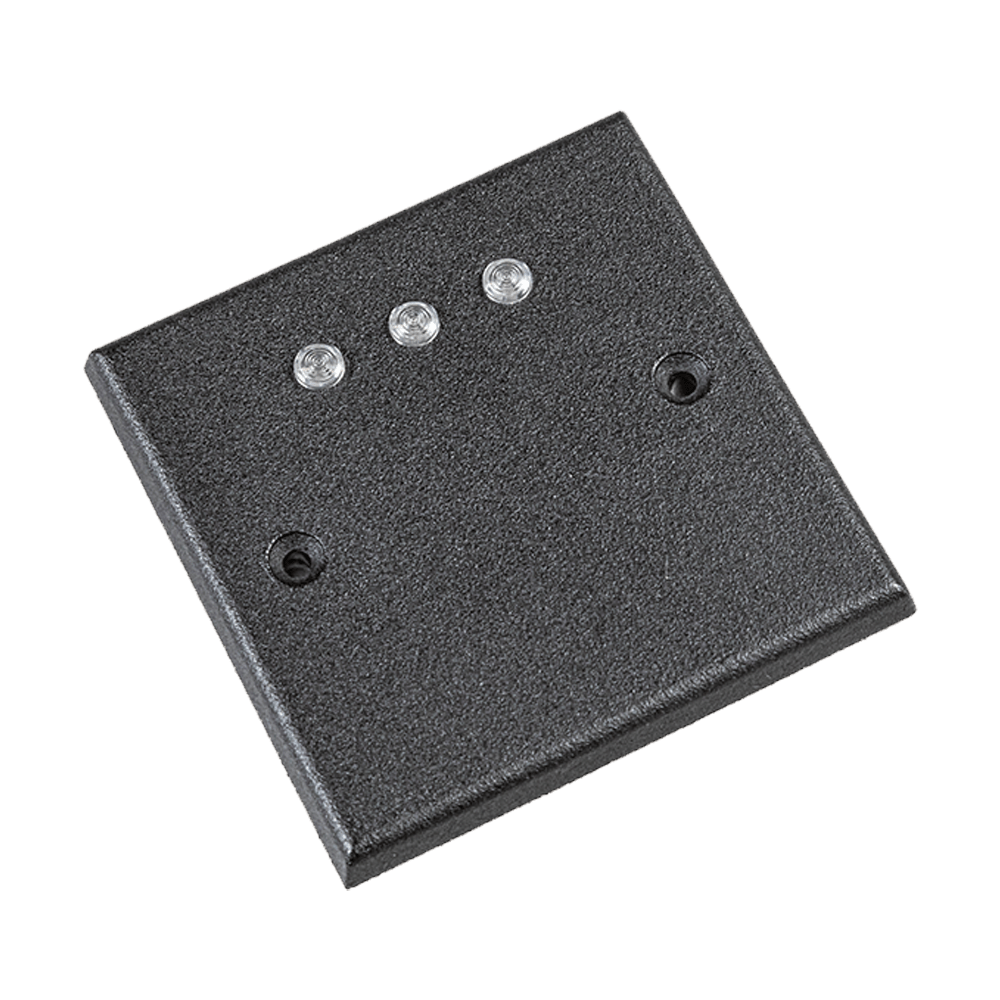

Its sleek and compact design guarantees seamless integration into modern settings without sacrificing visual appeal. To enhance usability and ensure clear system visibility, the JA1 is equipped with three built-in LED indicators that offer comprehensive user feedback.

Product Features

Joanus® JA1 Single Zone Antenna offers outstanding flexibility, control, and reliability, enabling integrators to create secure, efficient, and future proof RFID solutions.

  • Enhanced Performance Features
  • Streamlined Design: Designed for effortless installation
  • User Feedback: Equipped with LED indicators for clear communication
  • High-Speed, Long-Range Performance: Capable of reliable multi-tag reading
  • Durable and Dependable: Built to withstand critical applications
  • Wide Coverage: Use multiple antennas to cover extensive area
  • Noise Resilience: Engineered to perform effectively in noisy environments
Ja1_c

Applications

Mass Evacuation

Enable real-time visibility of personnel during emergency situations for faster and safer evacuations.

Time and Attendance

Automate workforce tracking to improve accuracy and reduce administrative overhead.

Personnel Safety

Monitor worker locations and enhance safety protocols in high-risk environments.

Technical Specification

Physical size: 88.3mm x 88.3mm x 23mm (incl. PCB)
3 15/32in × 3 15/32in × 29/32in
Weight: 53gm
1.8oz
Material: Body: Black ABS moulding
Temperature: -20°C to +60°C (-4°F to 140°F)
Humidity: 0 - 80% non-condensing
Power requirements: 7V to 26V dc @ 80mA
Read range: Up to 15m from a single antenna
Speed of reading: Typically, 20 per second/per antenna
Max cable length: Up to 1km from reader
Disposal: Return to Identec for safe disposal
Approvals: CE, UKCA, BLE-SIG, EN 61000-6-1:2019, EN 61000-6-3:2007+A1:2011, ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.3.1

Resources

Downloadable files containing technical information about JA1
