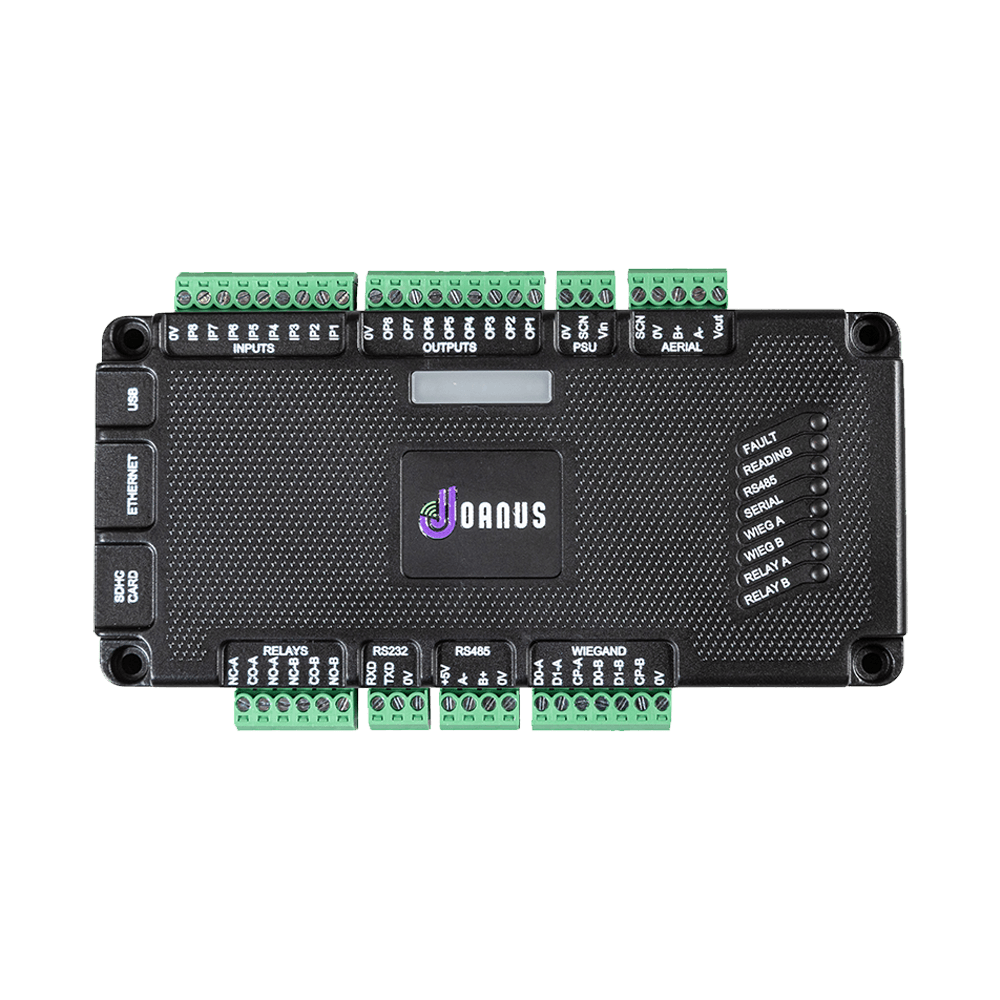

Jr1_c

JR1

RFID Reader

The JR1 RFID Reader gives Joanus the intelligence to identify, manage and act on active RFID tag data with speed, accuracy and confidence, capturing multiple antenna inputs simultaneously to create wider, smarter detection zones without complex loop-based installation. Compact, configurable and built for demanding environments, it gives security OEMs and system integrators a reliable, scalable foundation for safer sites, smoother operations and stronger visibility.

Features

  • AES 128-bit Secure data exchange
  • Can monitor up to 32 individual antennas
  • Up to 15m range from a single antenna
  • Expandable detection zone to cover large areas
  • Wiegand, RS232, RS485, Ethernet & OSDP
  • 8 x customisable input ports
  • 8 x customisable output ports
  • 2 x Volt free contact relays
  • Configurable via RF Field (JC1)
  • Multiple reporting protocols
  • Reader firmware upgradable

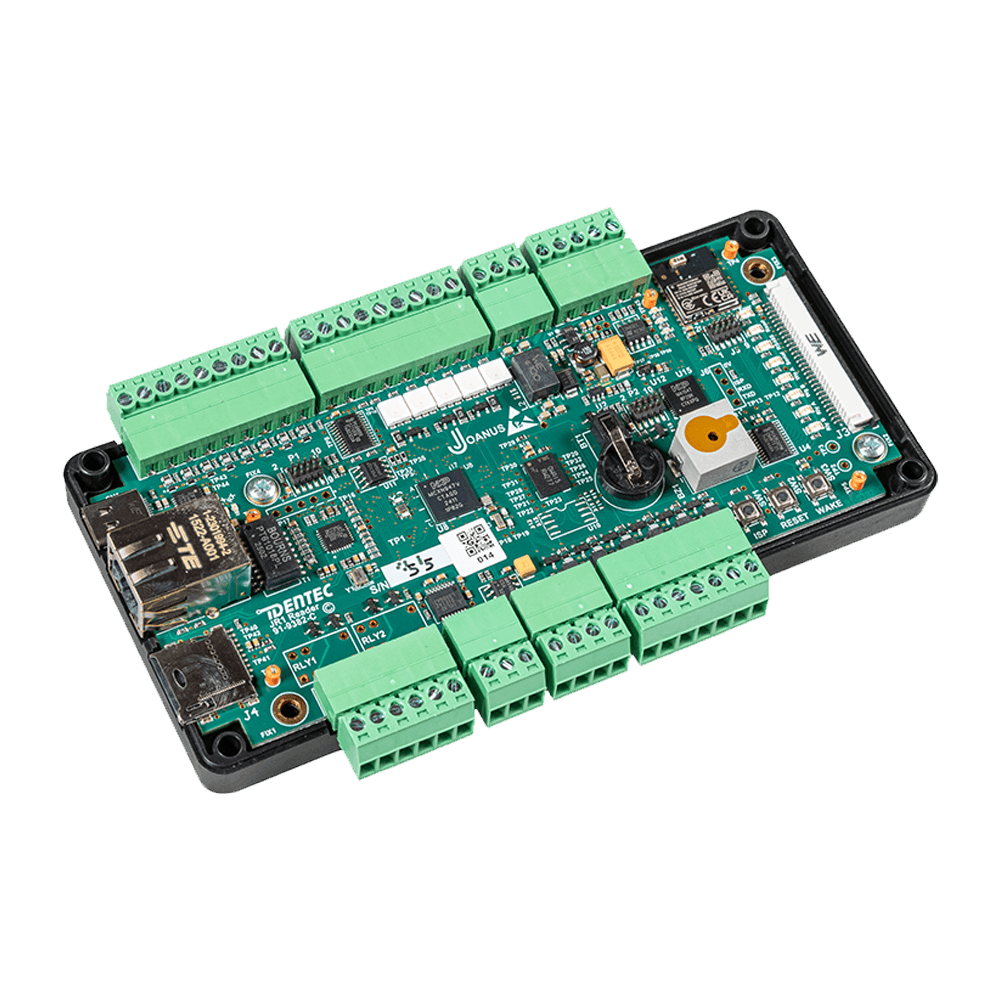

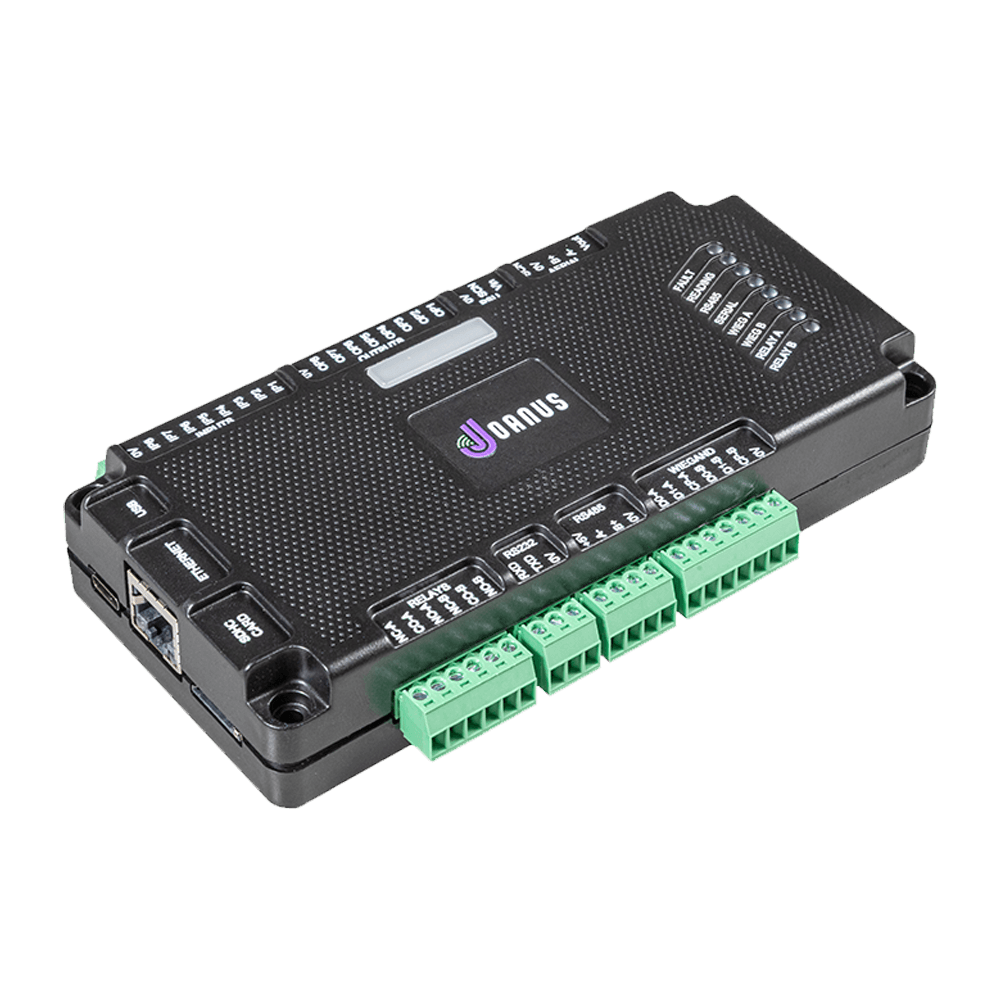

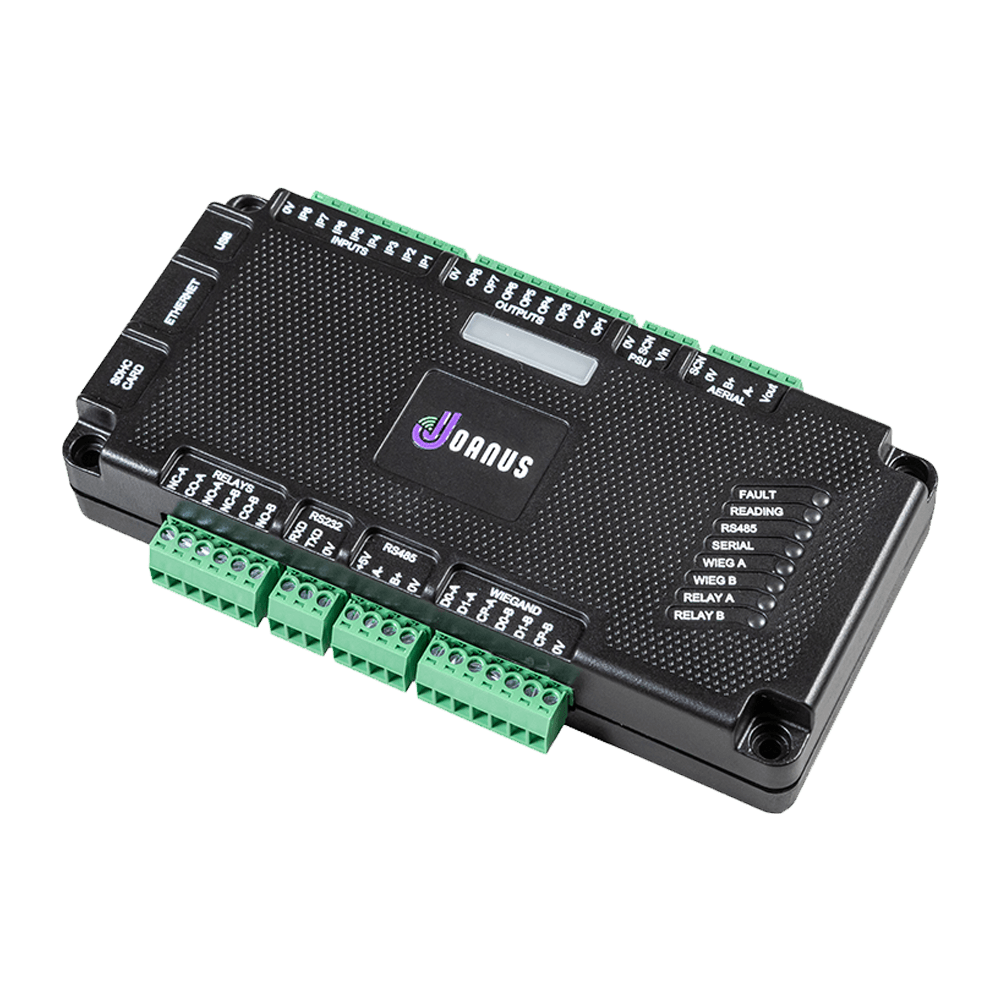

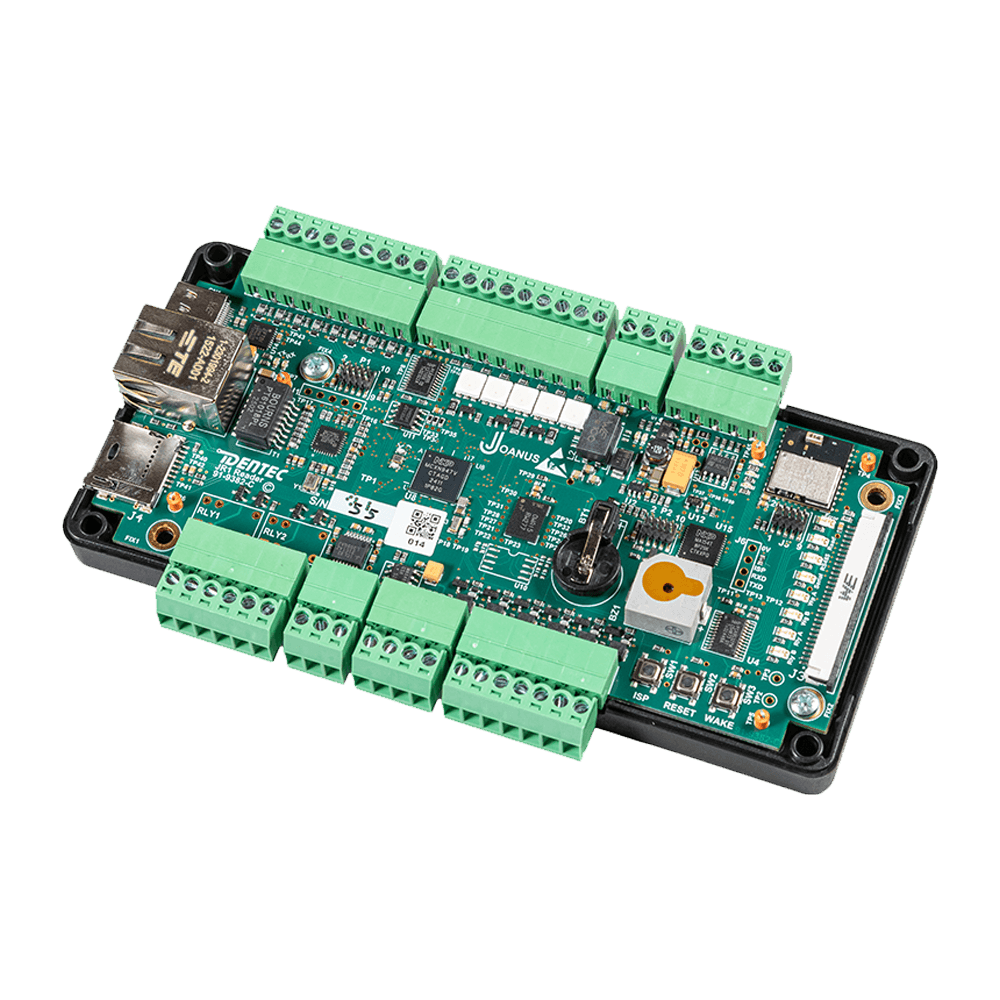

Jr1_e Jr1_f Jr1_i Jr1_h

Applications

Mass Evacuation

Enable real-time visibility of personnel during emergency situations for faster and safer evacuations.

Time and Attendance

Automate workforce tracking to improve accuracy and reduce administrative overhead.

Personnel Safety

Monitor worker locations and enhance safety protocols in high-risk environments.

Technical Specification

Coding: Unique 48-bit Card ID
Physical size: 152mm x 89mm x 28mm (5 125/127in x 31/2in x 1 7/64in)
Weight: 183gm (with terminal blocks) (6.4oz)
Material: Black ABS moulding
Temperature: -20°C to +60°C (-4°F to 140°F)
Humidity: 0 - 80% non-condensing
Power requirements: 7V to 26V dc @ 200mA
Output format:
via terminal block
Wiegand, RS232, RS485, Ethernet & OSDP
Battery low: Can be configured to report tag battery power or raise alarms below threshold
Read range: Up to 15m from a single antenna
Speed of reading: Typically, 20 per second/per antenna
Reporting modes: Multiple reporting mode available
Configurable via JC1 configuration tool
Disposal: Return to Identec for safe disposal
Approvals: CE, UKCA, BLE-SIG, EN 61000-6-1:2019, EN 61000-6-3:2007+A1:2011, ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.3.1
